Category: Entrances

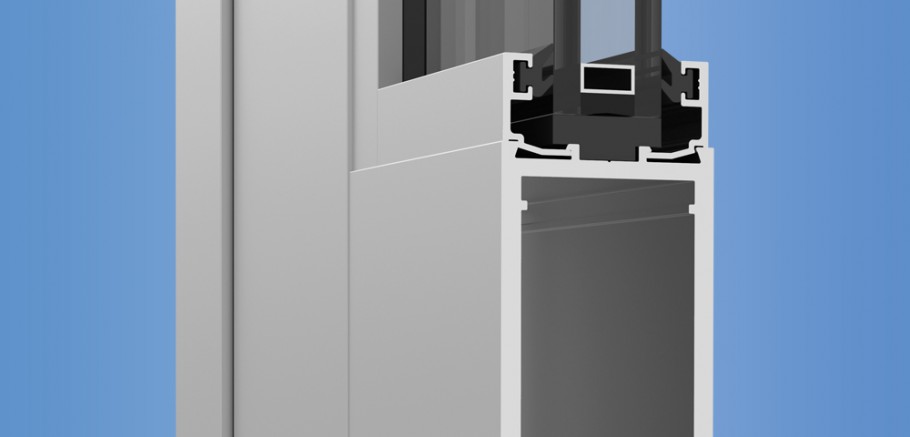

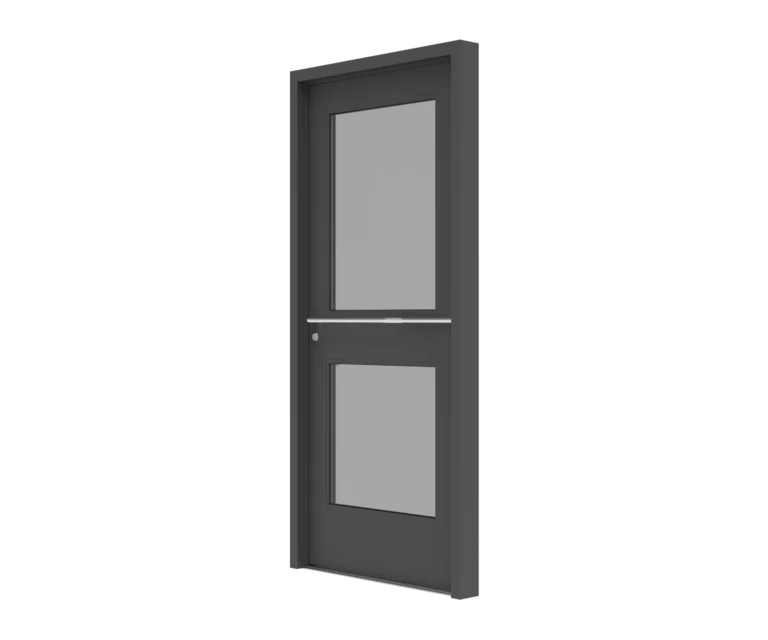

YKK AP's Monumental entrances offer an abundance of design applications. They feature 4" and 5" wide stile options and are produced with a typical 3/16" wall thickness providing exceptional durability making it ideal for use in high traffic areas.

VersaJamb®, our unique reinforced tubular door frame, allows for side-lite glazing without shear clips while maintaining the structural integrity of transom frames.
The 40M/50M entrances include a removable vertical mullion option for pairs. Door corners are mechanically joined and welded to ensure that they are more than capable of withstanding today’s most demanding conditions. Standard hardware options include the Smart Series ergonomic Push/Pull, Von Duprin® 33, 99, and YKK AP standard touch bar exit devices. Custom entrances are available with options for one inch glazing, mid rails, high bottom rails and will accommodate most custom hardware.

Von Duprin is a registered trademark of SCHLAGE LOCK COMPANY LLC2

Read More

Product Data

Features

Non-Thermal

Benefits

  • Offset Pivot, Butt Hung Options
  • Maximum Security Lock
  • Concealed Vertical Rod Exit Device (Offset Pivot only)
  • Multiple Depth Bottom & Mid-Rail Options
  • Custom Sizes and Hardware Options Available

Custom Entrances

  • Single Door up to 4′-0″ x 8′-0″
  • Pair Doors up to 8′-0″ x 8′-0″

Data

Construction Use: New / Retrofit

Door Type: Swinging/Terrace Door

Entrance Style: Monumental

Stile Width: Monumental

Glass Type: Monolithic / Insulating

Product Line

Anodized Plus®
