Category: Storefronts

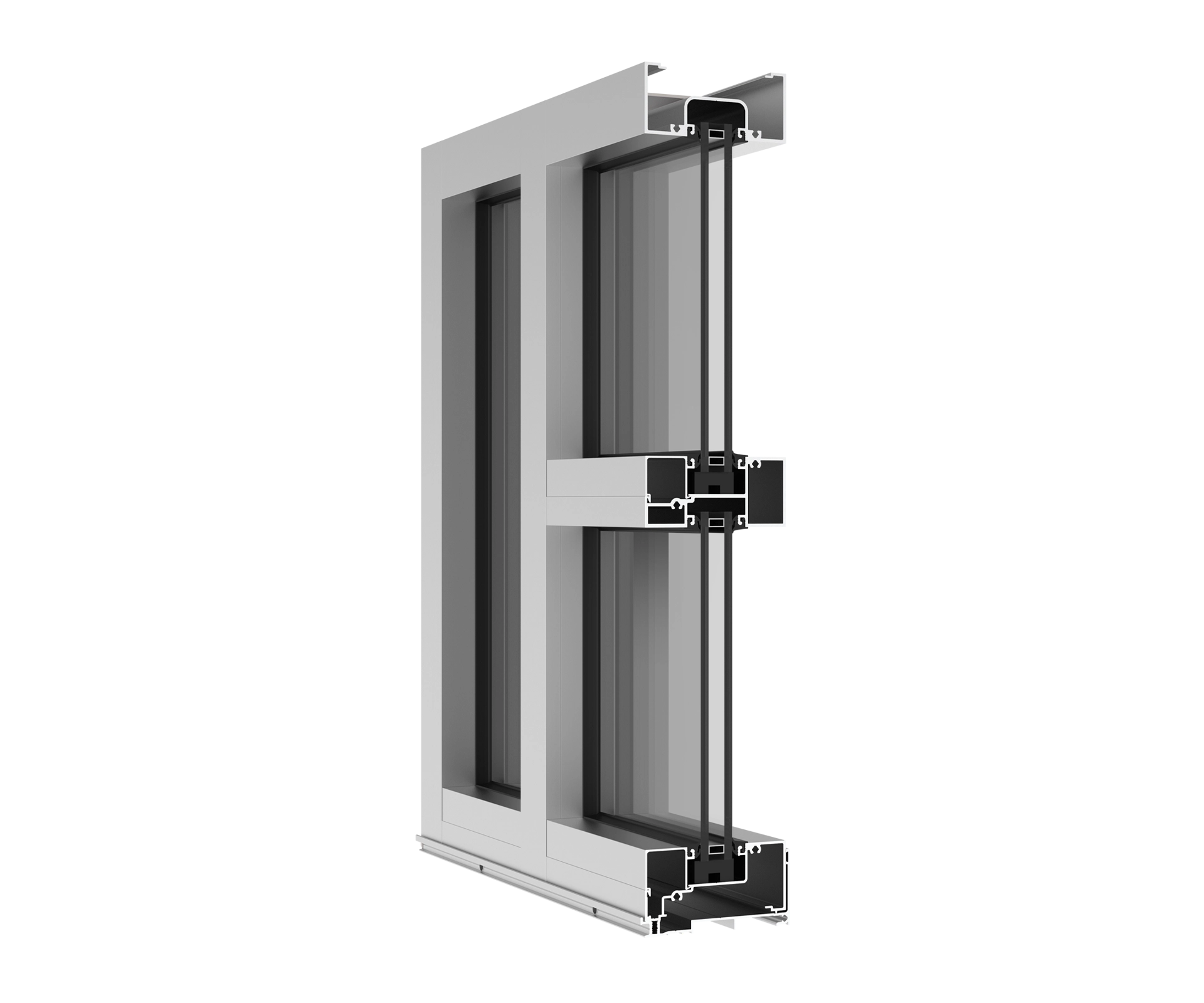

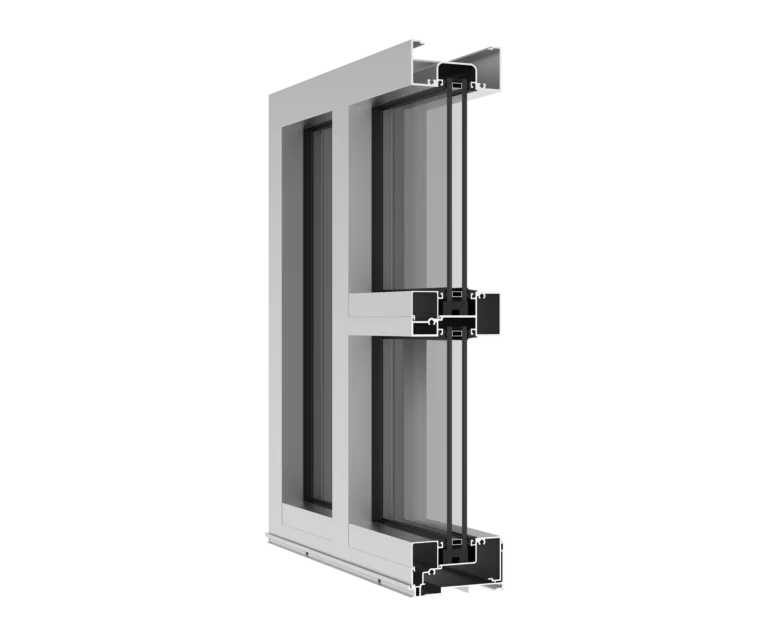

YES 45 FI (2” x 4-1/2”) is a center set, flush glazed framing system developed for 1” insulating glass and other types of infill panels of varying thicknesses.

This architectural commercial storefront system will accommodate YKK AP’s hinged mullion, as well as our flexible mullion; these mullions allow more creative freedom where curves and angles become a functional part of the design.

Read More

Product Data

Features

Rapid Building Envelope / Non Thermal

Benefits

  • Outside or Inside Glazed
  • Screw Spline and Shear Block Assembly
  • Gasket With Stretch-Resistant Cord
  • Integral Entrance Door Frames
  • Enhanced Water Infiltration Resistance

Standard Entrances

  • Model 20D/35D/50D Single Doors up to 4’–0” x 8’–0”
  • Model 20D/35D/50D Pairs up to 8’-0” x 8’-0”

Data

Construction Use: New / Retrofit

Sightline: 2"

Mullion Depth: 4-1/2"

Framing Installation Method: Screw Spline / Shear Block

Glass Type: Insulating

Product Line

Anodized Plus®
