Category: Storefronts

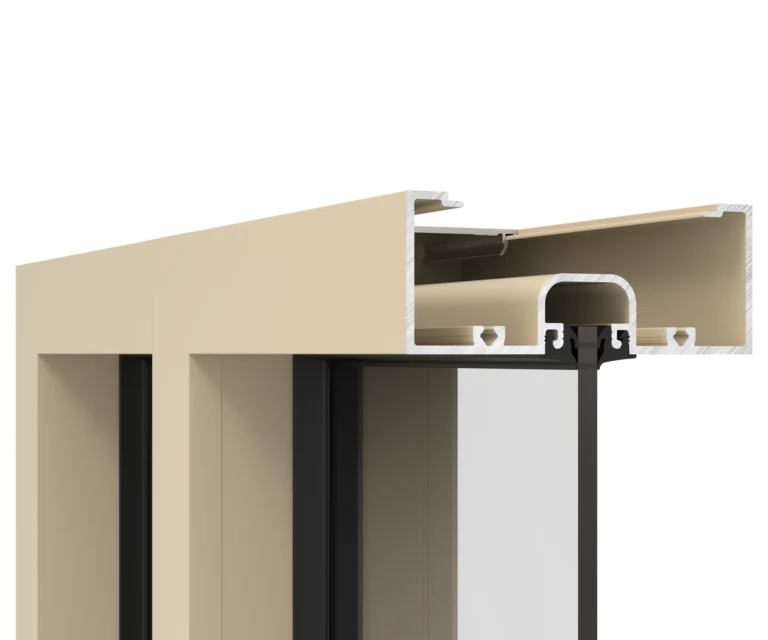

YES 45 FS (1-3/4”x 4-1/2”) is a center set, flush glazed framing system designed primarily for 1/4” glass or infill panels 1/4” to 3/8” thick.

This architectural commercial storefront system will accommodate YKK AP’s hinged mullion, as well as our flexible mullion; these mullions allow more creative freedom where curves and angles become a functional part of the design.

Read More

Product Data

Features

Rapid Building Envelope / Non Thermal

Benefits

  • Outside or Inside Glazed
  • Screw Spline and Shear Block Assembly
  • Gasket With Stretch-Resistant Cord
  • Integral Entrance Door Frames
  • Enhanced Water Infiltration Resistance

Standard Entrances

  • Model 20D/35D/50D Single Doors up to 4’–0” x 8’–0”
  • Model 20D/35D/50D Pairs up to 8’-0” x 8’-0”

Data

Construction Use: New / Retrofit

Sightline: 1-3/4"

Mullion Depth: 4-1/2"

Framing Installation Method: Screw Spline / Shear Block

Glass Type: Monolithic

Product Line

Anodized Plus®
