Category: Storefronts

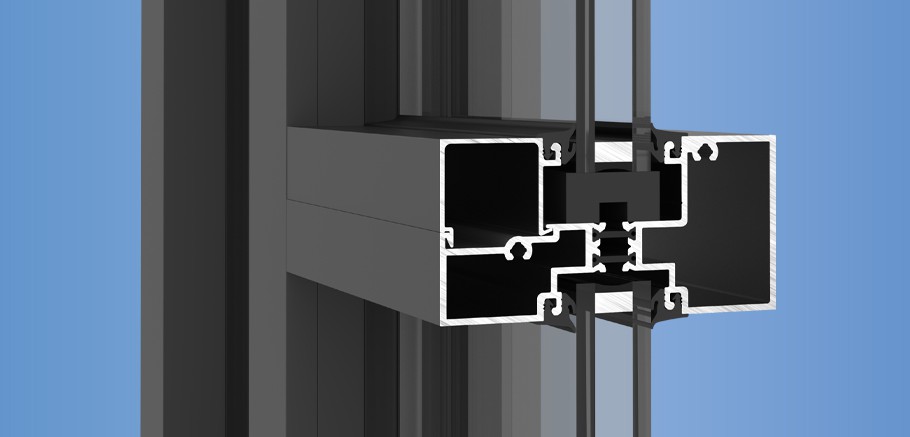

YES 45 FT is a thermally broken, center set, flush glazed storefront system for monolithic and insulating glass.

This architectural commercial storefront system is thermally broken by YKK AP MegaTherm® technology, which provides a continuous thermal barrier while conserving energy and reducing condensation. MegaTherm® technology incorporates 6/6 nylon polyamide glass-fiber reinforced pressure extruded bars that will not crack, shrink, or degrade.

Read More

Product Data

Features

Thermally Broken

Benefits

  • 2-1/4” Face by 4-1/2” Overall Depth Outside Glazed
  • Glazing of 1/4” up to 1” Infills
  • Screw Spline or Shear Block Assembly
  • Gasket With Stretch-Resistant Cord
  • YKK AP MegaTherm® Thermal Break
  • Separate Interior/Exterior Finish Options

Data

Construction Use: New / Retrofit

Sightline: 2-1/4"

Mullion Depth: 4-1/2"

Framing Installation Method: Screw Spline / Shear Block

Glass Type: Monolithic / Insulating

Thermal Method: Iso Struts

Product Line

Anodized Plus® / MegaTherm®
