Category: Entrances

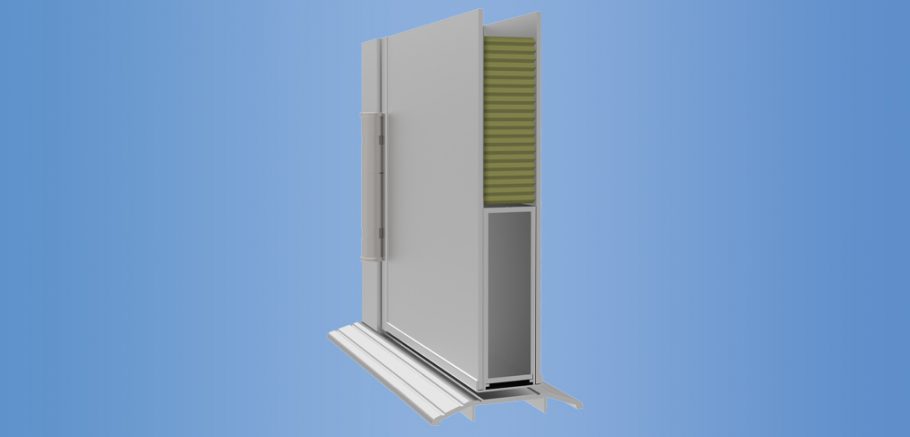

YKK AP's flush panel entrance, Model 25FD, is available with a durable Fiber Reinforced Polyester resin (FRP) or an Aluminum Skin to meet both aesthetic and performance requirements of any project.

Marine Grade high compression honeycomb core material provides superior performance in compression strength. An aluminum skeleton in the form of a 4-1/2″ backup tube with a minimum 1/8″ wall thickness provides the strength necessary to resist abuse and maintain the integrity of the door. This strong skeleton eliminates the need for hardware specific reinforcement. Model 25FD is designed to accept a variety of locking and hinging hardware for security and egress applications.

Read More

Product Data

Features

Non Thermal

Benefits

  • 1-3/4″ Door panel will mount easily into YKK AP door frames
  • Locking hardware options include Rim Panics, Latch Locks, and Maximum Security Locks
  • Doors are available pre-glazed with 1/4″ monolithic or 1″ insulating glass
  • Aluminum louvers are available to meet project requirements
  • FRP panels are standard with a random pebble textured skin
  • Exterior Grade FRP resin provides superior resistance to fading  and available in: White, Grey, Dark Bronze, and Beige
  • Aluminum skins are also available in Clear and Dark Bronze anodized finishes

Custom door sizes

  • Single Door up to 4′-0″ x 8′-0″
  • Pair Doors up to 8′-0″ x 8′-0″

Data

Construction Use: New / Retrofit

Door Type: Swinging/Terrace Door

Entrance Style: Monumental

Stile Width: Monumental

Glass Type: Monolithic / Insulating
