Category: Curtain Walls

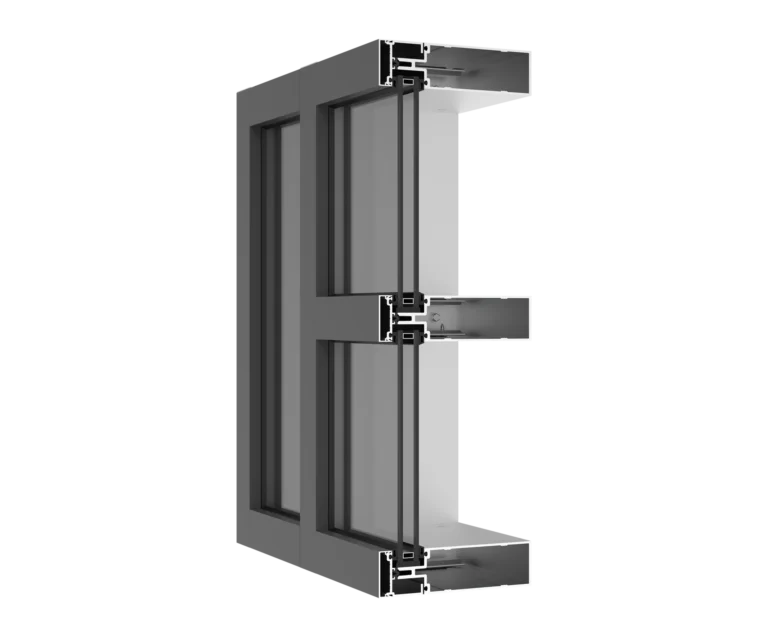

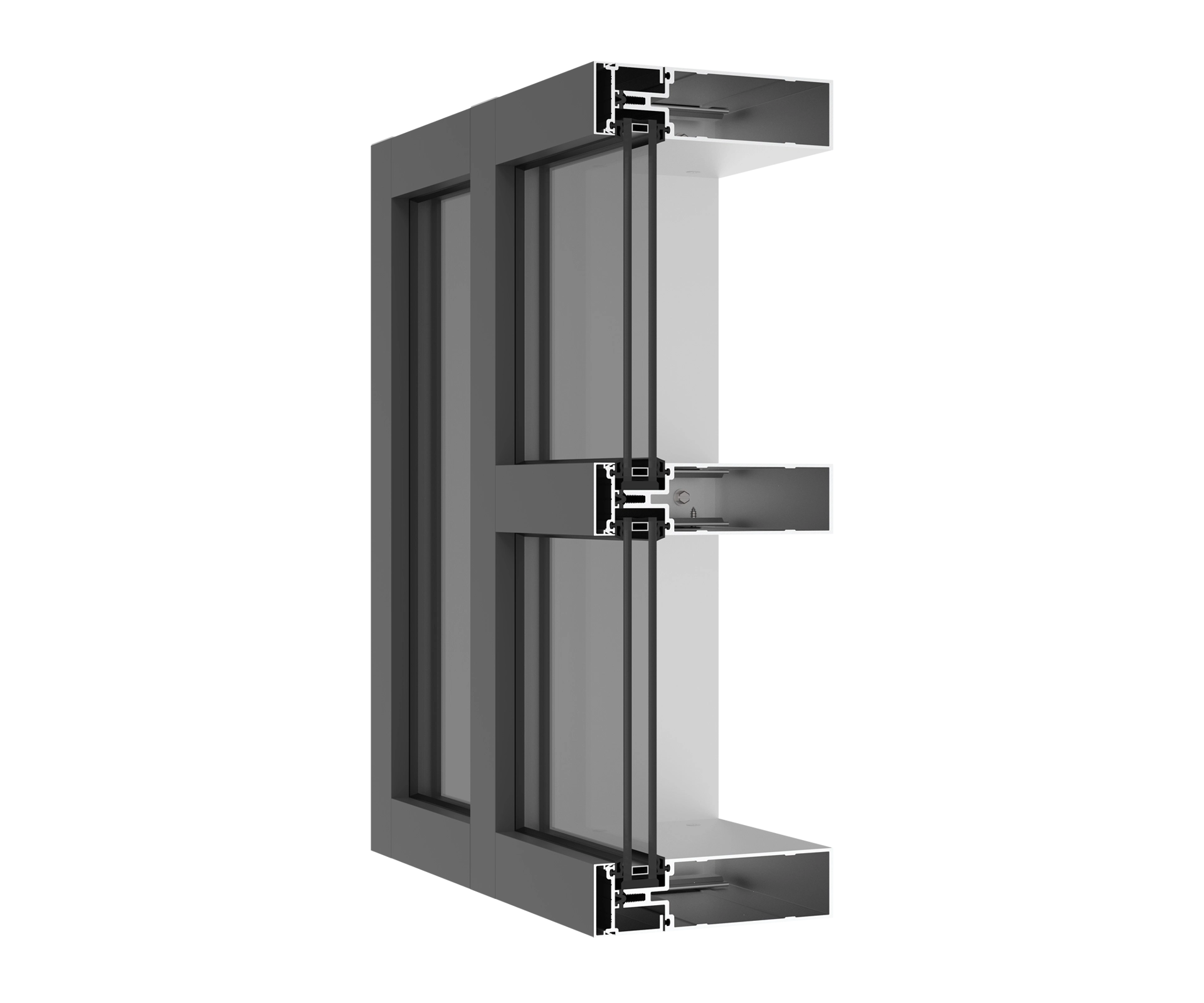

The YCW 752 is an outside glazed pressure wall system that offers a sight line of a mere 2” wide.

The system offers a wide variety of face covers and back members of several different depths that may be steel reinforced to suit design requirements. YCW 752 also provides improved thermal performance to conserve energy and lower operating costs.

Read More

Product Data

Features

Non Thermal

Benefits

  • 2” Face by 2-3/4”, 3-3/4” or 5-1/4” Back Member
  • Outside Glazing of 1/4” or 1” Glazing
  • Various Snap-On Covers to Fit Design Needs
  • Separate Interior/Exterior Finish Options
  • Low Profile Door Sub-Frames for YKK AP Entrances

Data

Construction Use: New / Retrofit

Sightline: 2"

Mullion Depth: 1/4" Glazing Infill: 6-5/8" │ 1" Glazing Infill: 4-7/8", 7-3/8"

Framing Installation Method: Shear Block

Glazing Installation: Outside

Glass Type: Monolithic / Insulating

Glass Configuration: Front

Product Line

Anodized Plus®
