Category: Architectural Windows

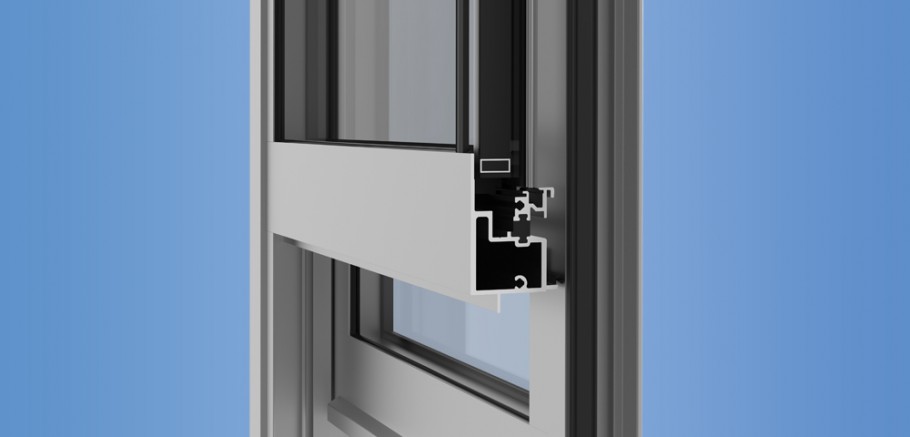

The YVS 410 TUH ProTek® Hung Window is designed to capture the side rails of the sash, providing a high level of security and dependability for both new construction and renovation projects.

The use of YKK AP’s ThermaBond Plus® poured and de-bridged system provides superior thermal qualities. The windows have successfully passed the impact and cycle requirements of ASTM E-1886, ASTM E 1996, and the test requirements for the Florida High Velocity Hurricane Zone (TAS 201, TAS 202, & TAS 203). A full selection of quality block and tackle, spiral, and Class 5 Ultra-Lift® balances are available. Optional SecurSweep™ sash locks are available that incorporate a special security latch to prevent tampering from the outside.

Ultra-Lift is a registered trademark of Caldwell Manufacturing Company.

Read More

Product Data

Features

Thermally Broken / Hurricane Mitigation / Blast Mitigation

Benefits

  • AAMA/NAFS 101/I.S.2/NAFS-02
    • AW-65
  • Florida state-wide approval +80/-120 PSF
  • 4″ frame depth
  • Integrates with YFW 400 TUH Fixed Window
  • Accepts 1″ Large & Small Missile glazing
  • Factory glazing and screens
  • Blast Mitigation Testing
  • YVS Window Systems – A complete line of high performance, thermally broken Single Hung windows

Data

Construction Use: New / Retrofit

Window Configurations: Hung - Vertical Slider

Frame Depth: 4"

Glass Type: Insulating

Thermal Method: Pour and Debridge

Product Line

Anodized Plus® / ProTek® / Thermabond Plus®
