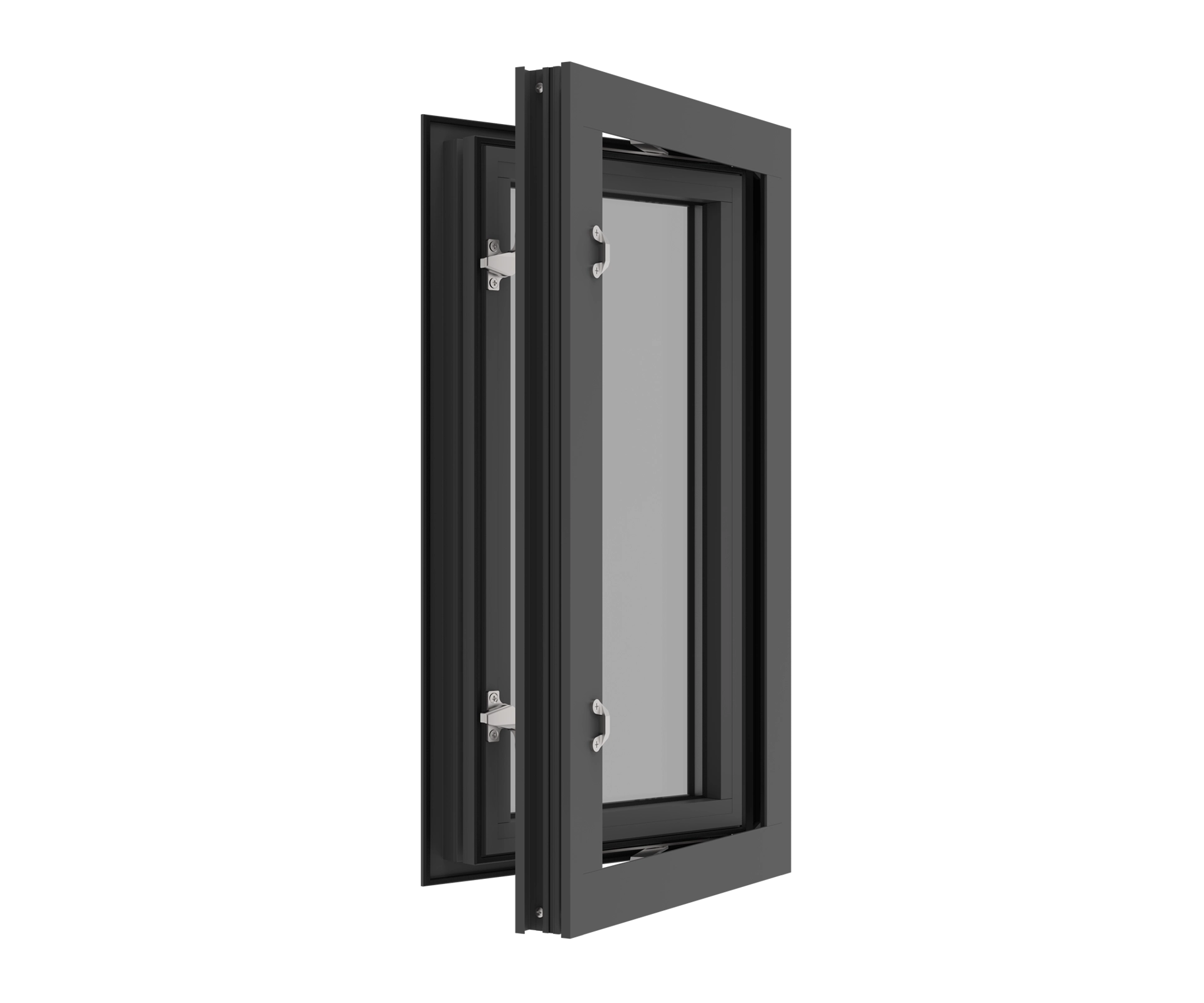

YOW 225 TUH - Thermally Broken, Impact Resistant and Blast Mitigating Operable Window

YOW 225 TUH - Thermally Broken, Impact Resistant and Blast Mitigating Operable Window
YOW 225 TUH - Thermally Broken, Impact Resistant and Blast Mitigating Operable Window
YOW 225 TUH - Thermally Broken, Impact Resistant and Blast Mitigating Operable Window
YOW 225 TUH - Thermally Broken, Impact Resistant and Blast Mitigating Operable Window thumb
YOW 225 TUH - Thermally Broken, Impact Resistant and Blast Mitigating Operable Window thumb
YOW 225 TUH - Thermally Broken, Impact Resistant and Blast Mitigating Operable Window thumb
Category: Architectural Windows

Performance boosting YOW 225 TUH windows now feature oversize window options and expanded installation options while providing an increase in school security over safety glazing.

These additions eliminate job specific engineering and testing as maximum vent size increased from 15 SF to 24 SF with cost effective .090” PVB for LMI.

Product specifications for YOW 225 TUH include openings to 7’-9” tall singles and doubles, or continuous window runs with stacking mullions. For larger openings, the operating windows can be installed in YKK AP impact rated storefront and curtain wall systems. the most cost effective and weather resistant configuration is a double casement in a master frame featuring a reduced sight line and no secondary penetrations of mullions or sill starter.

Read More

Product Data

Features

Thermally Broken / Hurricane Mitigation / Rapid Building Envelope

Benefits

  • 2-1/4” Frame Depth Casement Outswing, Project Out, & Fixed
  • Meets IBC requirements for all wind zones
  • Florida Product Approvals 16312, 16313, 16314 – High Velocity Hurricane Zone (HVHZ) and Wind Zone 3 (WZ 3)
  • Accepts 1” insulating glass
  • Factory glazing and screens
  • Heavy Duty Hardware Standard
  • Multi-Point Hardware Standard on Casements
  • Large Missile Impact with .090” PVB
  • Small Missile Impact with .060” PVB



Data

Construction Use: New / Retrofit

Window Configurations: Casement Outswing / Fixed / Operable - Project Out

Frame Depth: 2-1/4"

Glass Type: Insulating

Thermal Method: Pour and Debridge

Product Line

Anodized Plus® / ProTek® / Thermabond Plus®

Sea Scout Base Galveston

Featured Project

Sea Scout Base Galveston

On the shores of Offatts Bayou in Galveston, Texas, a five-story, 60,000-square-foot-building rises above the neighboring structures. The building, Sea Scout Base Galveston, is a state-of-the-art learning center designed to cultivate youth interest in Science, Technology, Engineering and Math (STEM) topics, as well as sailing.

View Project
