Category: Sloped Glazing

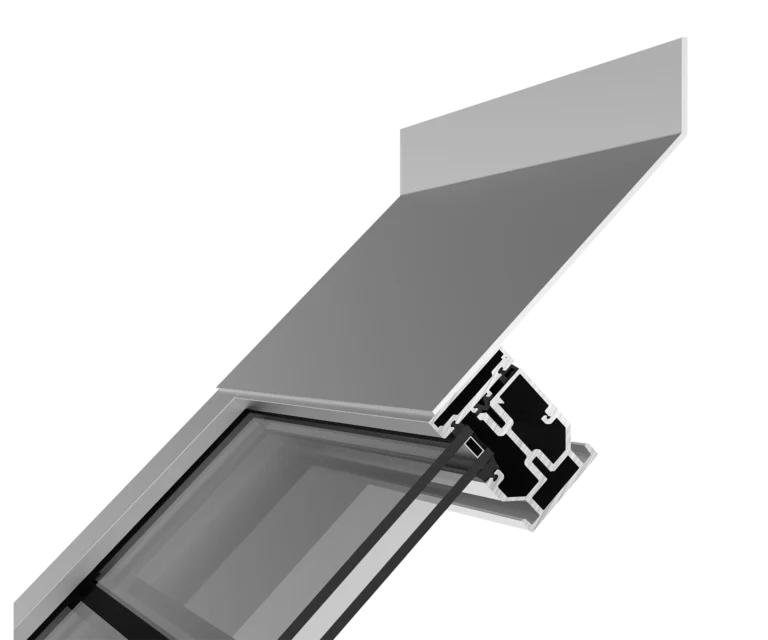

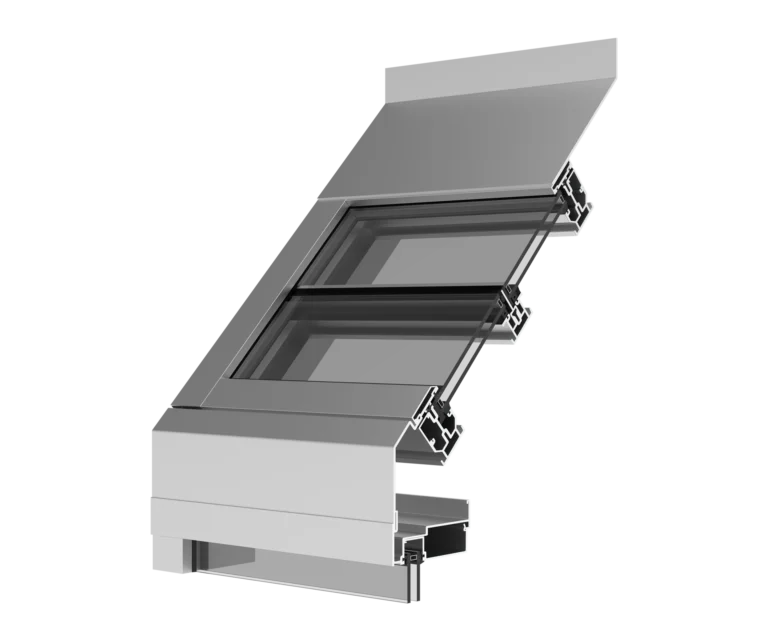

YSK 750 is a complete slope glazed framing system designed for walls with long rafters. The system incorporates an integral gutter that may be set directly down onto a curb or on top of a vertical curtain wall.

The unique hinge will accommodate slope angles from fifteen to sixty degrees and provide positive anchorage for the slope. Purlins (horizontal members) are available with a variety of face covers to meet design requirements or may be structural silicone glazed for a clean, uninterrupted appearance. YSK 750 is available in stock lengths or may be factory engineered and fabricated.

Read More

Product Data

Features

Non Thermal

Data

Construction Use: New / Retrofit

Glass Type: Monolithic / Insulating

Product Line

Anodized Plus®
