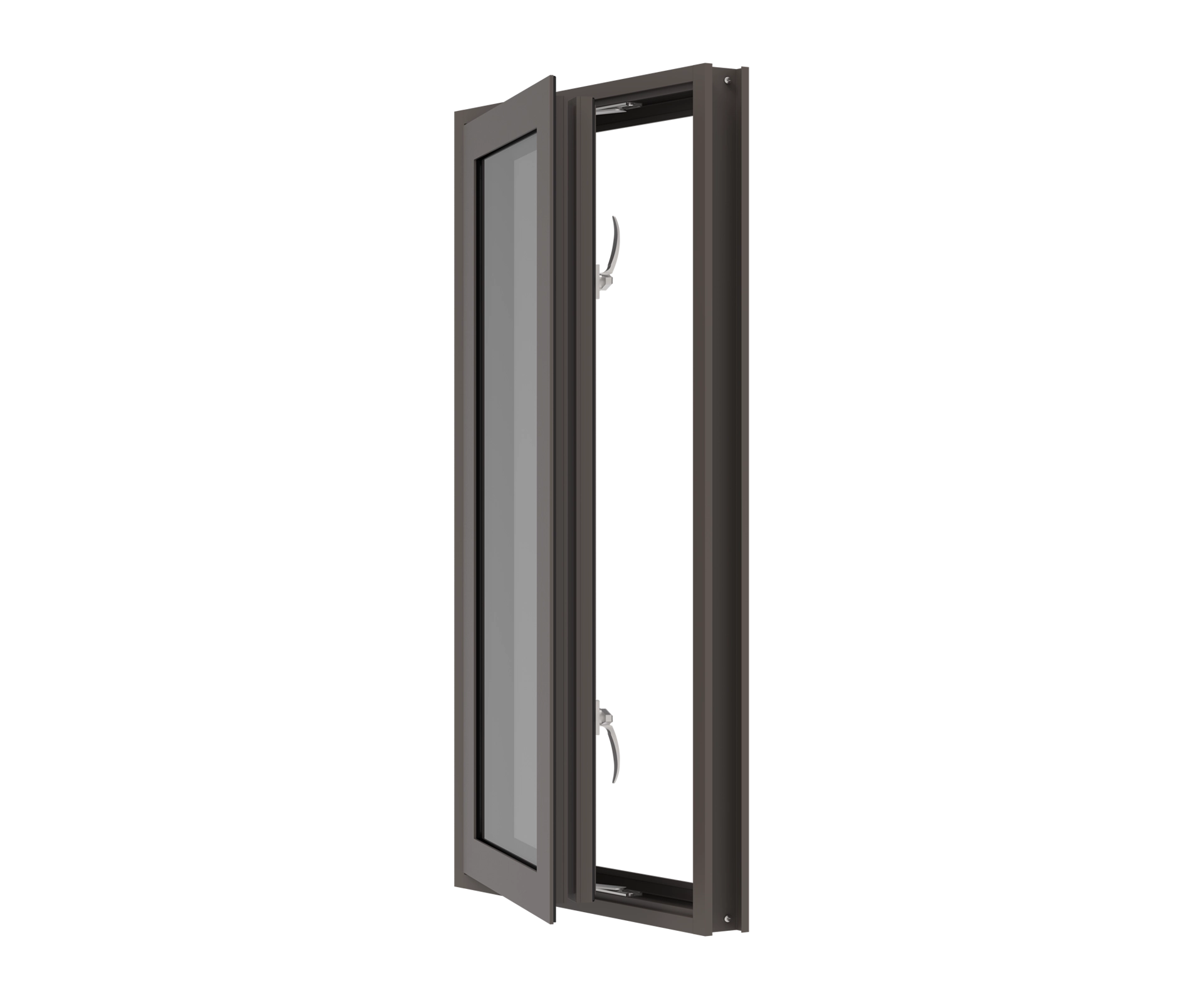

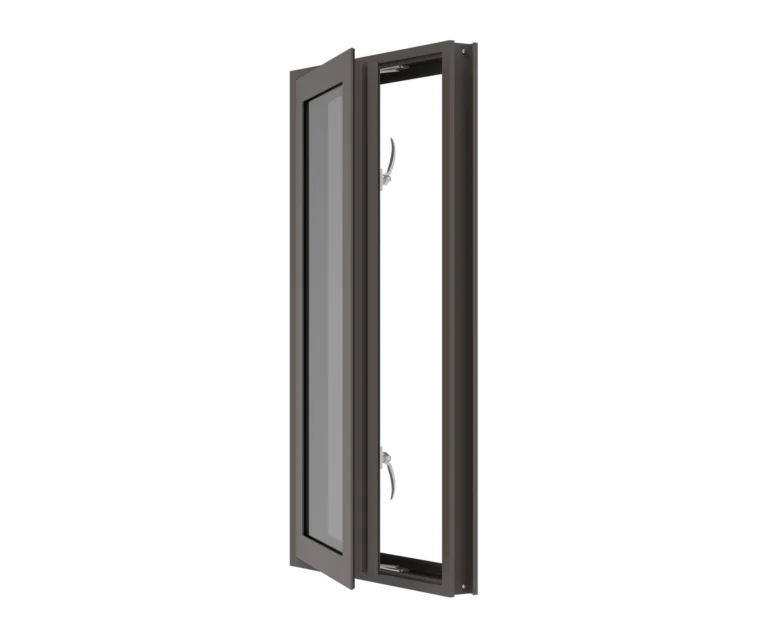

YOW 225 H - Impact Resistant Operable Window

YOW 225 H - Impact Resistant Operable Window
YOW 225 H - Impact Resistant Operable Window
YOW 225 H - Impact Resistant Operable Window thumb
YOW 225 H - Impact Resistant Operable Window thumb
Category: Architectural Windows

YOW 225 H windows have been designed and engineered to the highest standards so as to provide a window that will be worry free.

The windows have successfully passed the impact and cycle requirements of ASTM E-1886, ASTM E 1996, and the test requirements for the Florida High Velocity Hurricane Zone (TAS 201, TAS 202, & TAS 203). The windows are glazed with laminated monolithic glass. The vents are flush with the frame thus eliminating unsightly overlap.

Read More

Product Data

Features

Hurricane Mitigation / Rapid Building Envelope / Non Thermal

Benefits

  • Available configurations: Casement Outswing, Project Out, & Fixed
  • AAMA/WDMA/CSA 101/I.S. A440-05
    • AW-65 Operable
    • AW-100 Fixed
    • Florida state-wide approval
    • Operable: ±65 PSF
    • Fixed: +70/-90 PSF Large Missile
    • ±100 PSF Small Missile
  • 2-1/4” frame depth
  • Accepts 9/16” glazing
  • Factory glazing and screens
  • Stacking mullions
  • Standard heavy-duty hardware

Data

Construction Use: New / Retrofit

Window Configurations: Casement Outswing / Fixed / Operable - Project Out

Frame Depth: 2-1/4"

Glass Type: Monolithic

Product Line

Anodized Plus® / ProTek®
