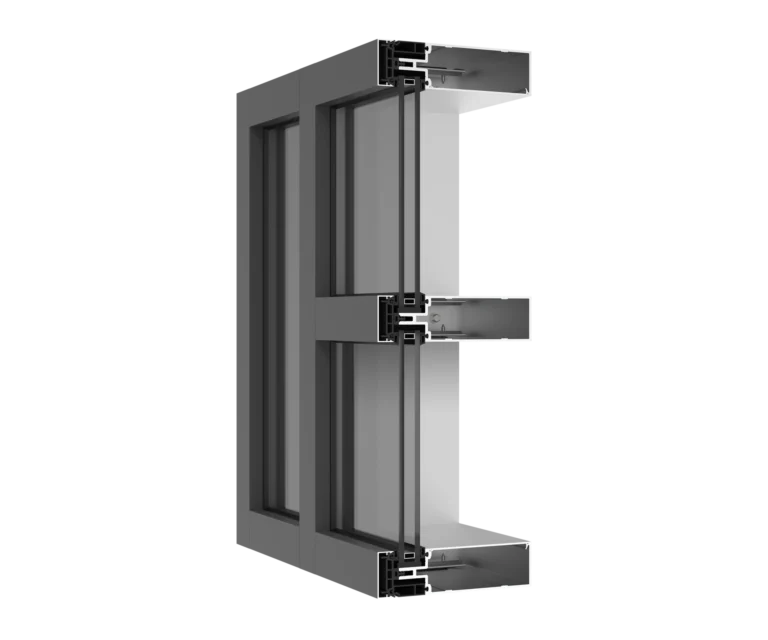

YCW 752 OGP - Outside Glazed Pressure Wall System with Polyamide Pressure Plates
Category: Curtain Walls
The YCW 752 OGP is an outside glazed pressure wall system that offers a sight line of a mere 2” wide. This system utilizes a low conductivity pressure plate made from an industry proven material, Polyamide 6/6.
The YCW 752 OGP is an outside glazed pressure wall system that offers a sight line of a mere 2” wide. This system utilizes a low conductivity pressure plate made from an industry proven material, Polyamide 6/6. The polyamide pressure plate is a superior alternative to competitive fiberglass products that require special handling and equipment during fabrication. Because of this, it reduces temperature transfer from the exterior to the interior creating more comfortable interior space. This system offers a wide variety of face covers and back members of several different depths that can also be steel reinforced to suit design requirements.
Product Data
Features
Thermally Broken
Benefits
- 2” Face Covers instead of typical 2-1/2″
- Outside Glazing of 1”
- Various Snap-On Covers to fit design needs
- Polyamide Pressure Plate inserted for extra thermal performance
- Separate Interior/Exterior Finish Options
- Stick built with concealed fasteners
- Low Profile Door Sub-Frames for YKK AP Entrances
Data
Construction Use: New / Retrofit
Sightline: 2"
Mullion Depth: with 1" Glazing: 5", 7-1/2"
Framing Installation Method: Shear Block
Glazing Installation: Outside
Glass Type: Insulating
Glass Configuration: Front
