Category: Window Walls

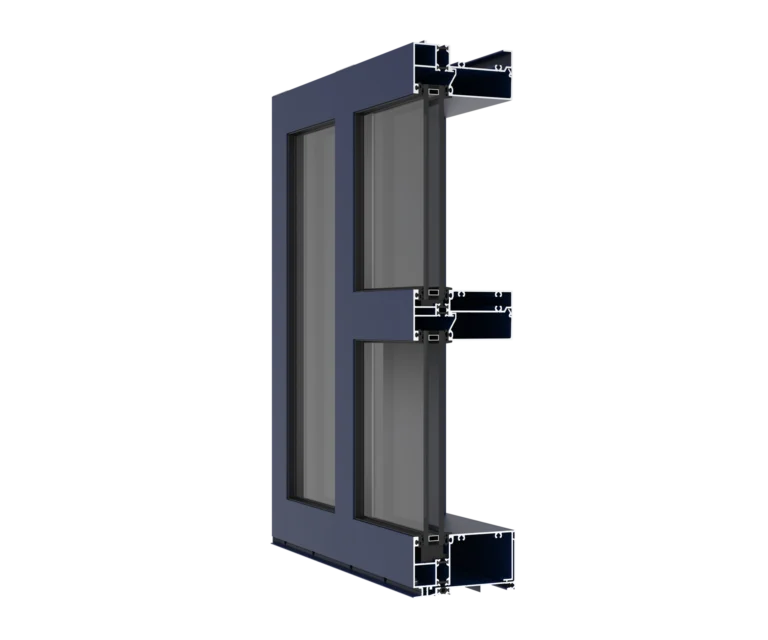

YWW 50 T is a Window Wall glazing system designed for use in multi-story applications. It includes an innovative slab edge cover that yields the beauty and appearance of a curtain wall application.

The glass plane is set to the front to maximize thermal performance. YWW 50 T is designed to accommodate 1″ glazing infill and, with the use of adapters, can also accommodate 1/4″ infill. The system has mullion options that allow glazing from the interior or the exterior. Structural Silicone Glazing is also an option. Thermal performance is enhanced by YKK AP’s patented MegaTherm® thermal break technology that also provides the system with dual finish capability. The screw spline assembly design makes fabrication and installation more efficient.

Read More

Product Data

Features

Thermally Broken

Benefits

  • Slab Edge Cover Option
  • MegaTherm® Thermal Barrier
  • Inside, Outside and SSG Glazing Options 1″ Infill
  • Compatible with Entrance Systems
  • Screw Spline Fabrication and Assembly

Data

Construction Use: New / Retrofit

Sightline: 2-1/4"

Mullion Depth: 5" (Without slab edge cover)

Framing Installation Method: Slab Edge / Continuous Head and Sill / Vertical Through / Screw Spline

Glazing Installation: Outside / Inside / Structural

Glass Type: Monolithic / Insulating

Glass Configuration: Front

Thermal Method: Iso Struts

Product Line

Anodized Plus® / MegaTherm®
