Category: Curtain Walls

YCW 750 SplineTech® is the latest addition to YKK AP’s very successful line of curtain wall glazing systems. The new system shares many of the same features, options, and accessories with the YCW 750 outside glazed curtain wall system, but it is designed to simplify fabrication and assembly.

All intermediate horizontal members are attached employing YKK AP’s patented screw spline technology. Eliminating the common shear block attachment reduces fabrication labor and enables the wall to be pre-assembled and completely prepared for glazing in the shop to further reduce field labor.

Read More

Product Data

Features

Unitized/Shop-Glazed / Thermally Broken / Rapid Building Envelope

Benefits

  • Enhanced design flexibility
    • Dual finish option (interior – exterior)
    • Variety of face covers
    • Engineered to meet the most stringent building codes
    • Optional two-sided structural silicone glazing at verticals
  • Reduced field labor
    • Verticals may be punched to attach horizontal members
    • Pre-assemble and prep for glazing in the shop

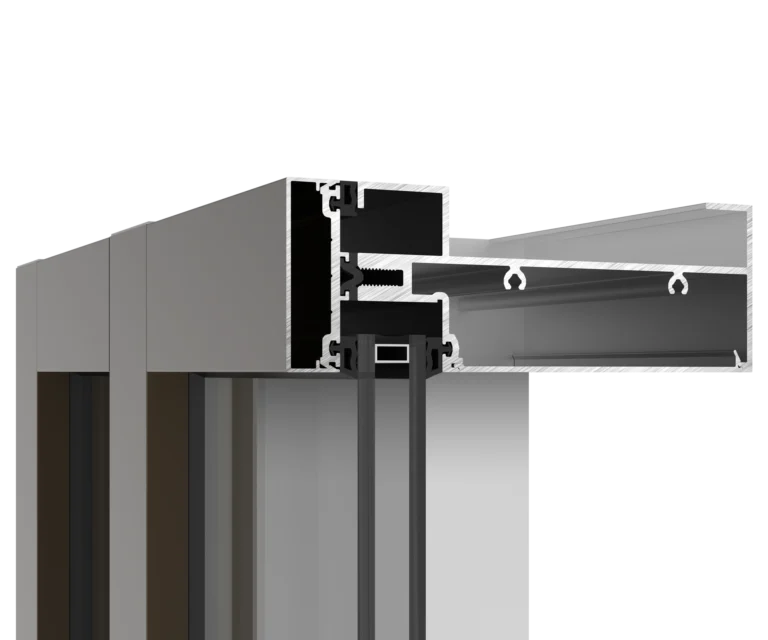

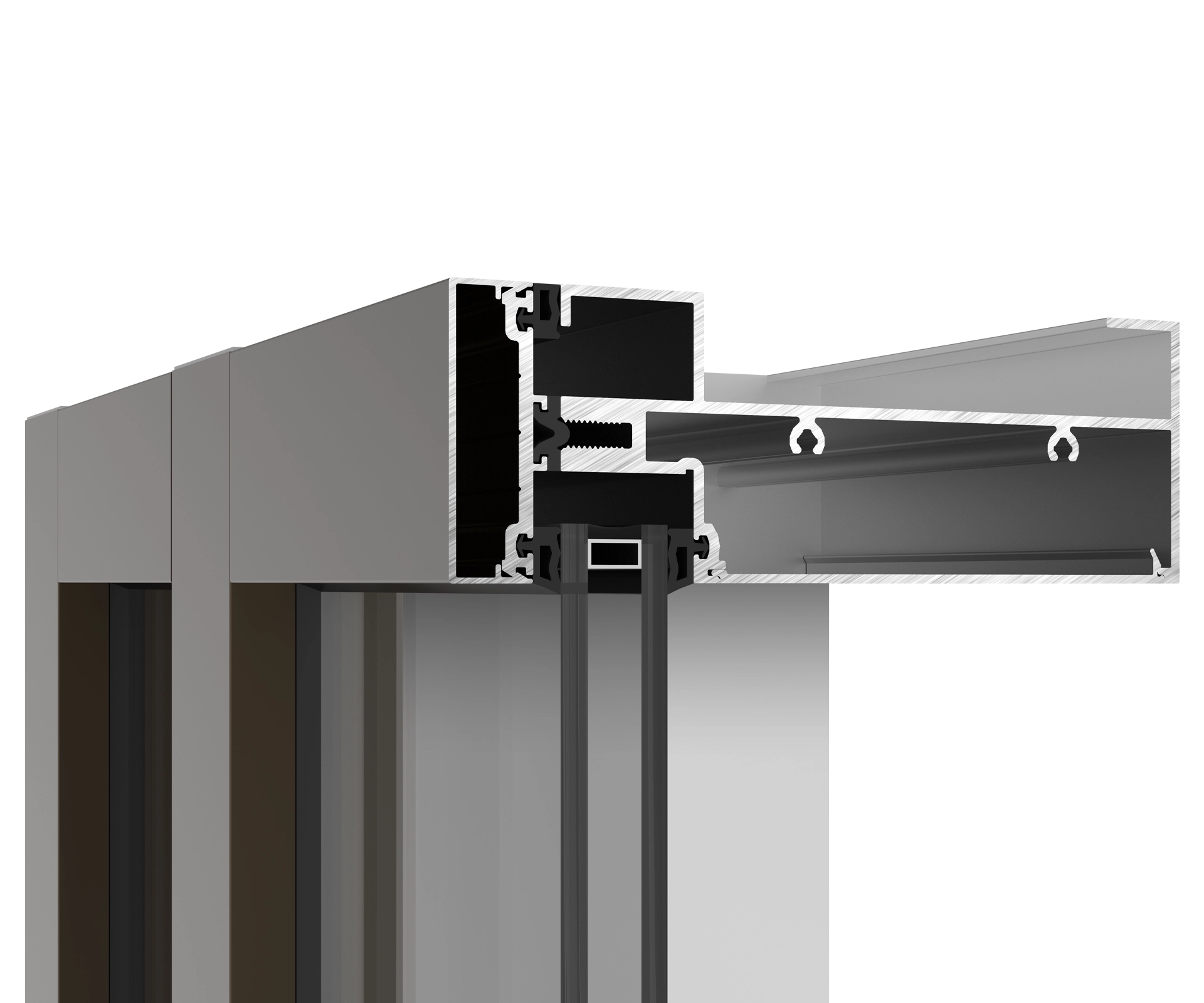

    • Open back head and sill members for ease of installation
  • Low profile door sub-frames for YKK AP entrances

Data

Construction Use: New / Retrofit

Sightline: 2-1/2"

Mullion Depth: 5-1/4", 6", 6-3/4" 7-1/2"

Framing Installation Method: Screw Spline

Glazing Installation: Outside / Structural

Glass Type: Monolithic / Insulating

Glass Configuration: Front
