YWW 50 TU - Thermally Broken Window Wall System with Optional Slab Edge and Cover
Category: Window Walls
The YWW 50 TU is a 5-inch Window Wall glazing system designed for use in multi-story applications. The system is thermally broken with our ThermaBond Plus® pour and de-bridged setup. It includes an innovative slab edge cover that yields the beauty and appearance of a curtain wall application.

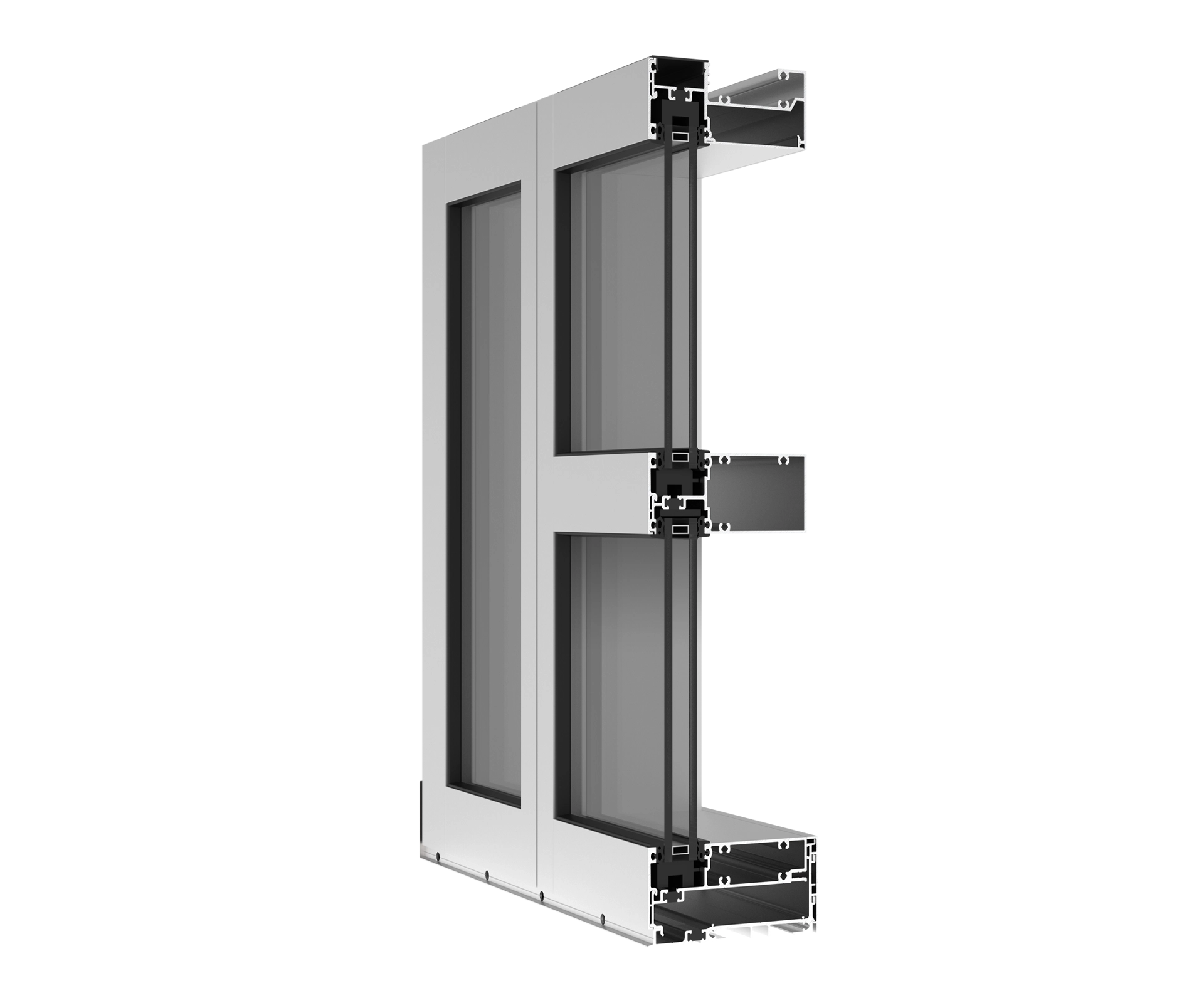

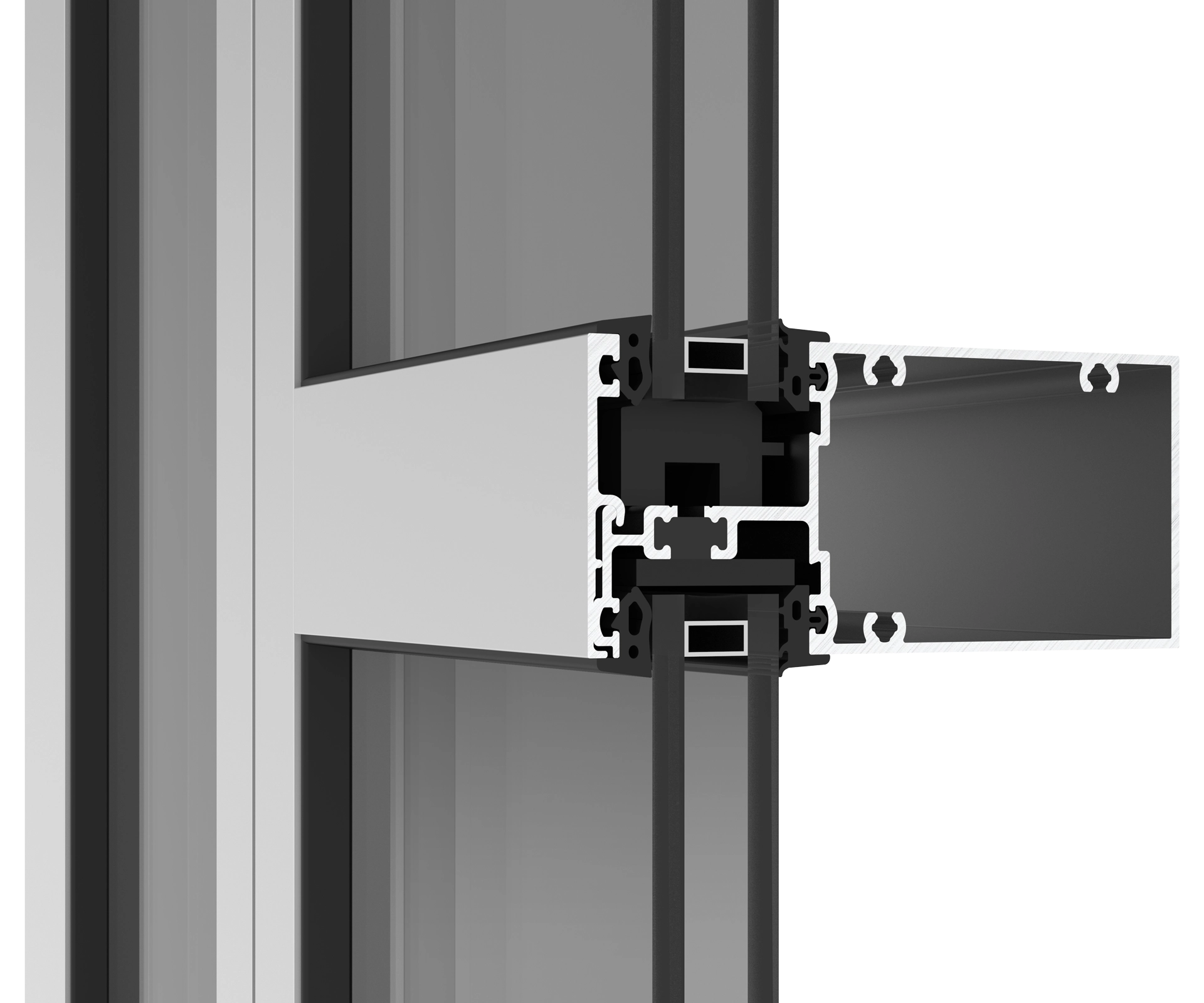

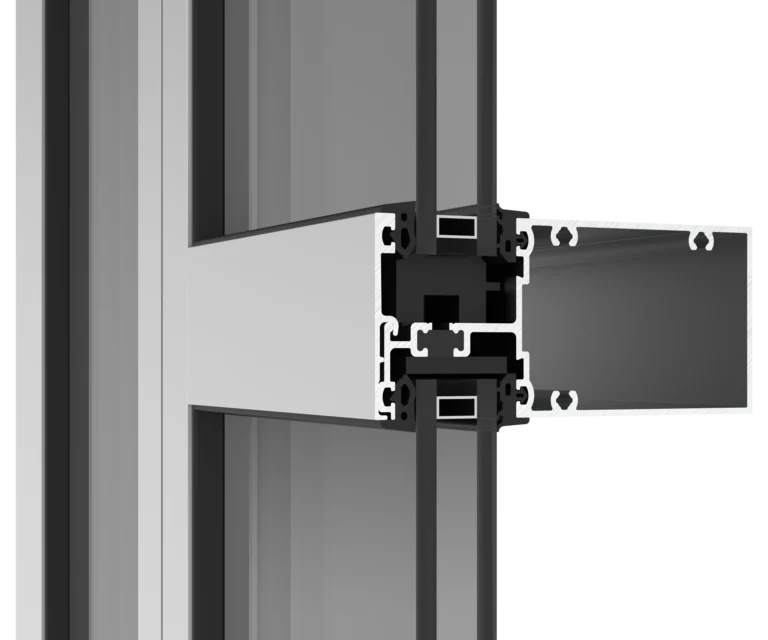

The YWW 50 TU is a 5-inch deep window wall glazing system designed for use in multi-story applications. It includes an innovative slab edge cover that yields the beauty and appearance of a curtain wall application. The glass plane is set to the front to maximize thermal performance. The system has mullion options that allow glazing from the interior or the exterior. Two-sided Structural Silicone Glazing is also an option. Thermal performance is enhanced by YKK AP’s patented ThermaBond Plus® thermal break technology that also provides the system with dual finish capability. The screw spline assembly design makes fabrication and installation more efficient.
Product Data
Features
Unitized/Shop-Glazed / Thermally Broken
Benefits
- Unitized/Pre-Glazed Option
- Slab Edge Cover Option
- Inside, Outside and SSG Glazing Options
- 1” Infill with 1/4” Infill Adapter Options
- ThermaBond Plus® Pour & De-Bridged Barrier
- Compatible with Entrance Systems
- Screw Spline Fabrication and Assembly
Data
Construction Use: New / Retrofit
Sightline: 2-1/4"
Mullion Depth: 5" (Without slab edge cover)
Framing Installation Method: Slab Edge / Continuous Head and Sill / Vertical Through / Screw Spline / Unitized
Glazing Installation: Outside / Inside / Structural
Glass Type: Monolithic / Insulating
Glass Configuration: Front
Thermal Method: Pour and Debridge
