Category: Window Walls

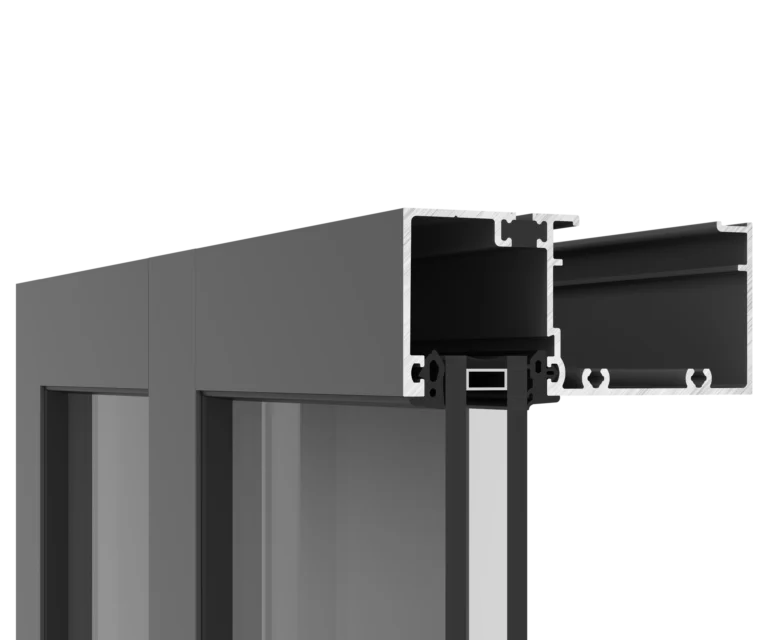

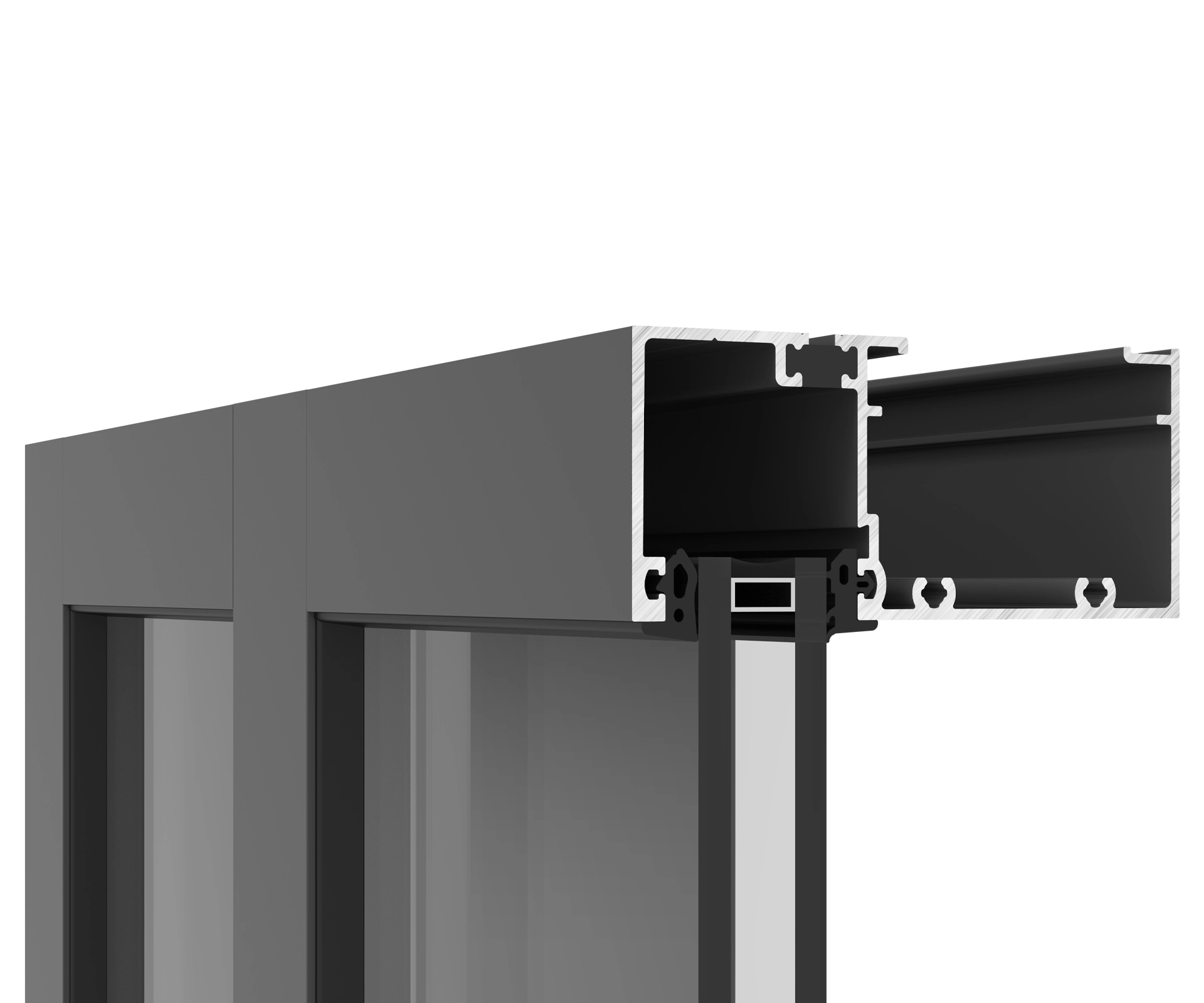

YWW 45 TU is designed specifically to meet the performance requirements of window walls for multistory buildings. Glass is set to the front of the system to maximize thermal performance and may be glazed from either the interior of the building for labor savings or from the exterior at column line applications.

YWW 45 TU is designed specifically to meet the performance requirements of window walls for multistory buildings. Glass is set to the front of the system to maximize thermal performance and may be glazed from either the interior of the building for labor savings or from the exterior at column line applications.

Read More

Product Data

Features

Thermally Broken / Rapid Building Envelope

Benefits

  • Perimeter Members: 2” x 4-1/2”
  • Intermediate Members: 2-1/4” x 4-1/2”
  • Screw Spline or Shear Block Construction
  • Optional Structural Silicone Glazed Intermediate Vertical
  • Optional Strap & Roll-Over Anchors Available for Precast Conditions.

Data

Construction Use: New / Retrofit

Sightline: 2"

Mullion Depth: 4-1/2"

Framing Installation Method: Continuous Head and Sill / Vertical Through / Screw Spline

Glazing Installation: Outside / Inside

Glass Type: Monolithic / Insulating

Glass Configuration: Front

Thermal Method: Pour and Debridge

Product Line

Anodized Plus® / Thermabond Plus®
