Category: Window Walls

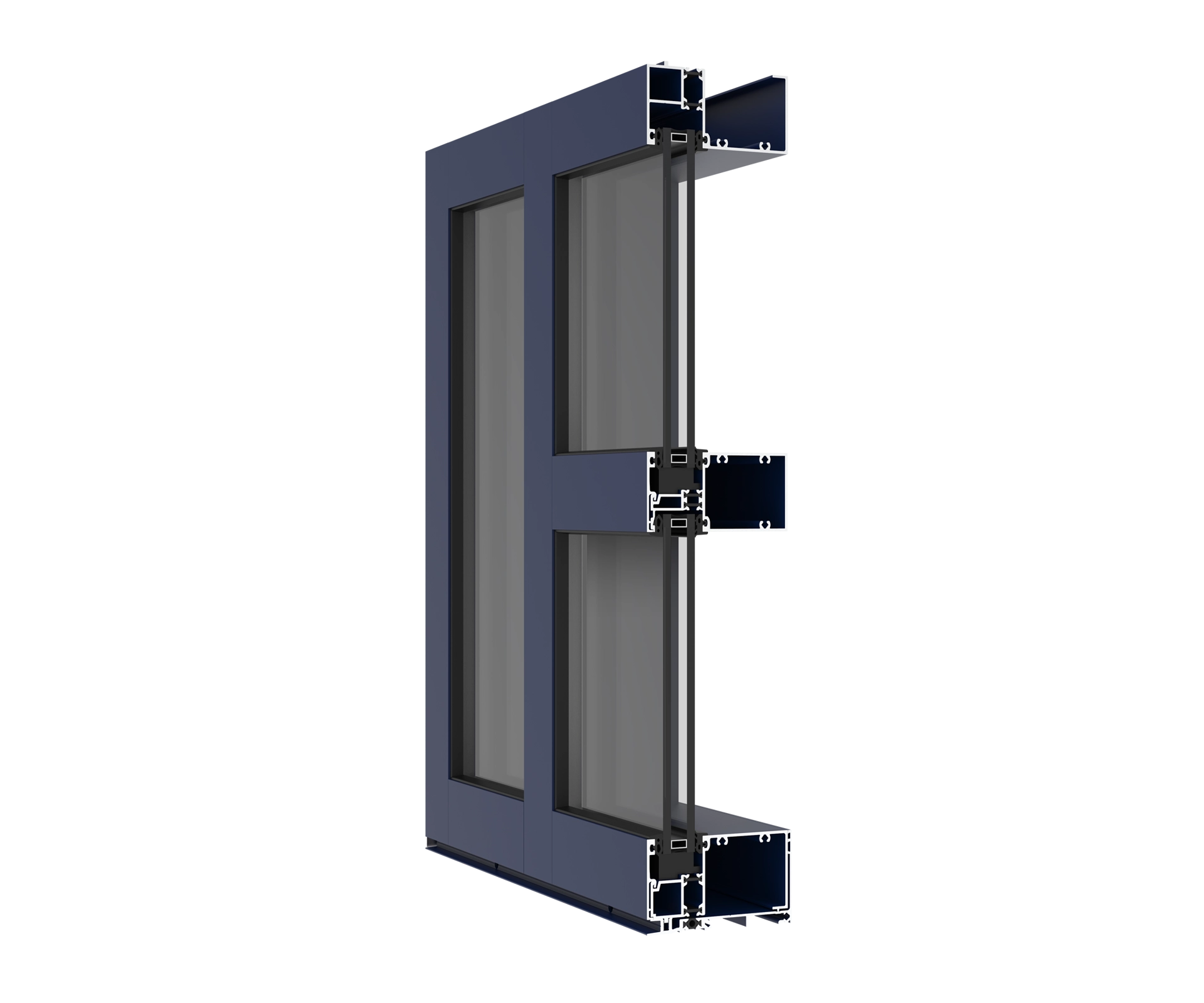

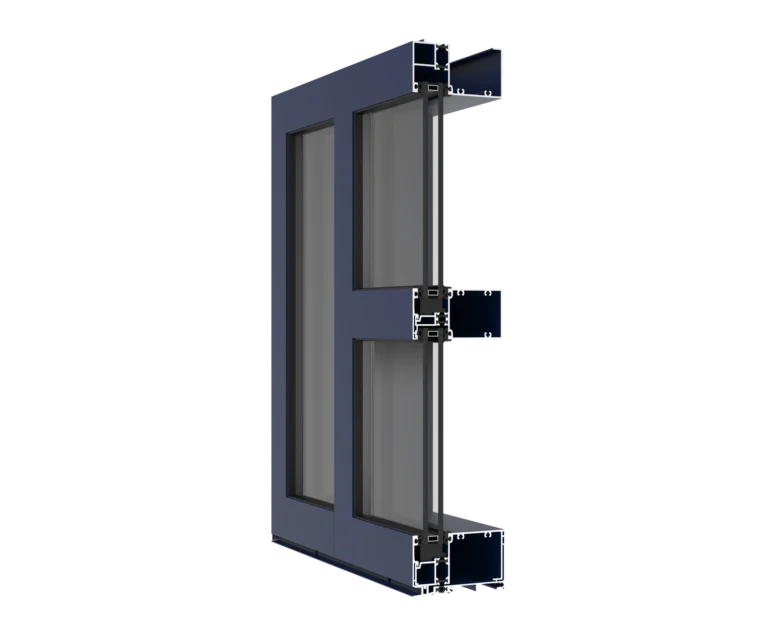

The YWW 45 T system is designed specifically to meet the performance requirements of window walls for multi-story buildings.

Glass is set to the front of the system to maximize thermal performance and may be glazed from either the interior of the building for labor savings or from the exterior at column line applications. The YWW 45 T system is thermally broken by YKK AP’s patented MegaTherm® technology. The assembly sits down on a thermally broken sill flashing member. Head, horizontal, and sill members are secured to the two piece vertical members employing YKK AP’s patented screw spline assembly.

Read More

Product Data

Features

Thermally Broken

Benefits

  • Screw Spline Construction
  • Optional Structural Silicone Glazed Intermediate Vertical
  • Separate Interior/Exterior Finish Options
  • Integral Door Frame Entrances

Data

Construction Use: New / Retrofit

Sightline: 2-1/4"

Mullion Depth: 4-1/2"

Framing Installation Method: Continuous Head and Sill / Vertical Through / Screw Spline

Glazing Installation: Outside / Inside / Structural

Glass Type: Monolithic / Insulating

Glass Configuration: Front

Thermal Method: Iso Struts

Product Line

Anodized Plus® / MegaTherm®
