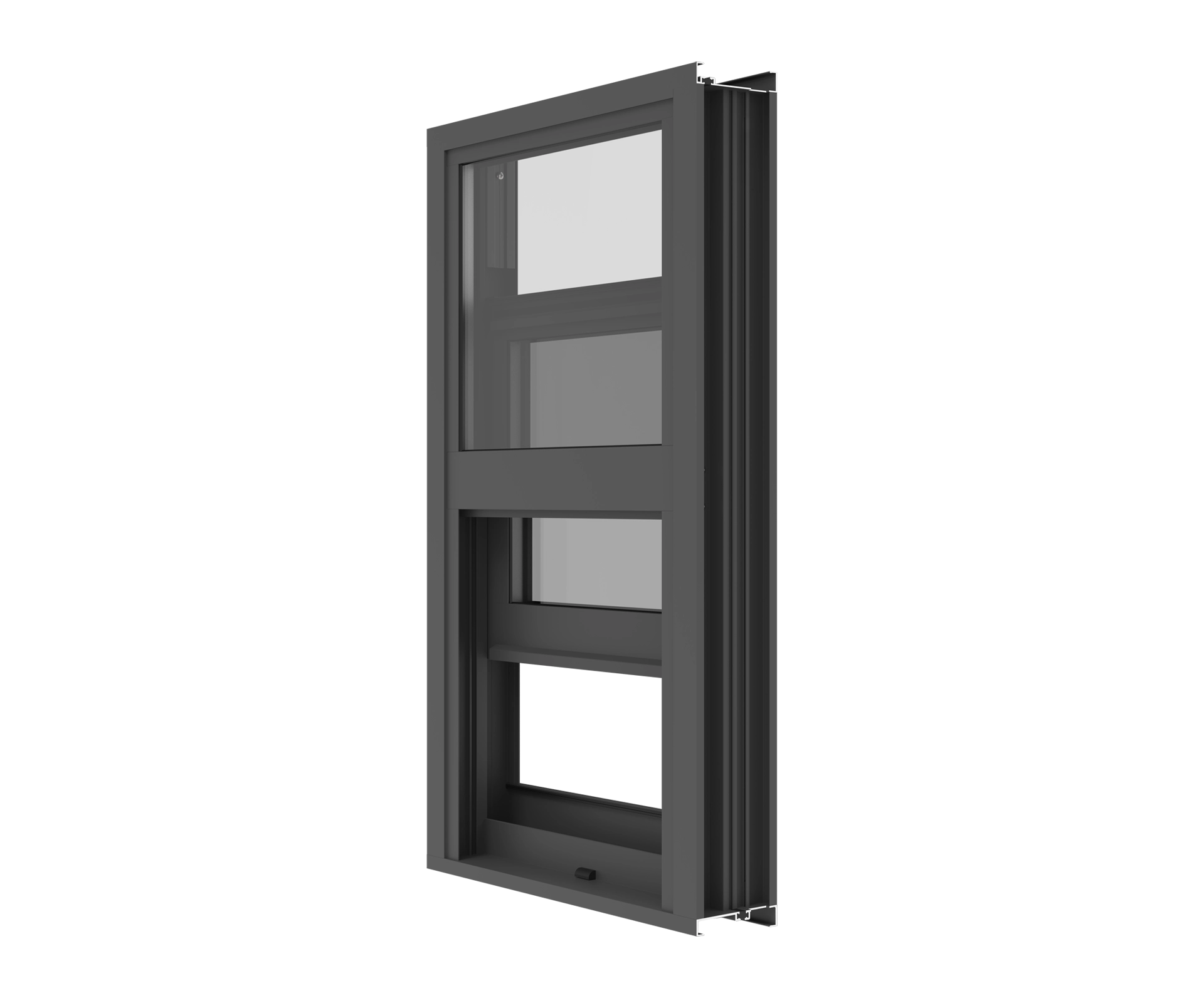

YVS 410 TU - Thermally Broken Side Loading Hung Window for Monolithic and Insulating Glass
Category: Architectural Windows
The YVS 410 TU Hung Window is designed to capture the side rails of the sash, providing a high level of security and dependability for both new construction and renovation projects.
The use of YKK AP’s ThermaBond Plus® pour and debridge system provides superior thermal qualities and a patented process to prevent dry shrinkage. A full selection of quality block and tackle, spiral, and Class 5 Ultra-Lift® balances are available. Optional SecurSweep sweep locks are available that incorporate a special security latch to prevent tampering from the outside.
Ultra-Lift is a registered trademark of Caldwell Manufacturing Company.
Product Data
Features
Thermally Broken
Benefits
- AAMA/WDMA 101/I.S. 2-97 and NAFS-1
- AW-65
- 4” frame depth
- Integrates with the YFW 400 TU Fixed Window
- Balance Capabilities
- Spiral
- Block & Tackle
- Class 5 Ultra-Lift®
- 1/4″ or 1″ Glazing
- Optional Screens
- Complete Accessory Packages
- Head/Jamb Receptors
- Vertical & Horizontal Mullions
- Panning
- Trim
- Applied Muntins
- Large and Small Missile Tested
Data
Construction Use: New / Retrofit
Window Configurations: Hung - Vertical Slider
Frame Depth: 4"
Glass Type: Monolithic / Insulating
Thermal Method: Pour and Debridge
