YTD 350 T - Thermally Broken Architectural Terrace Door

YTD 350 T - Thermally Broken Architectural Terrace Door
YTD 350 T - Thermally Broken Architectural Terrace Door
YTD 350 T - Thermally Broken Architectural Terrace Door
YTD 350 T - Thermally Broken Architectural Terrace Door thumb
YTD 350 T - Thermally Broken Architectural Terrace Door thumb
YTD 350 T - Thermally Broken Architectural Terrace Door thumb
Category: Balcony Doors

YTD 350 T Terrace Doors are the ideal choice for condominiums, hotels and high-rise residential properties, integrating smoothly with YKK AP wall systems or other wall conditions.

YTD 350 T utilizes a unique, three-way adjustable hinge and multi-point locking system. This ensures alignment so the door closes properly and creates a weather tight seal around the perimeter. Thermal efficiency is enhanced with YKK AP’s MegaThem® technology, which also creates dual finish capability. A Low Profile Threshold option is available.

Read More

Product Data

Features

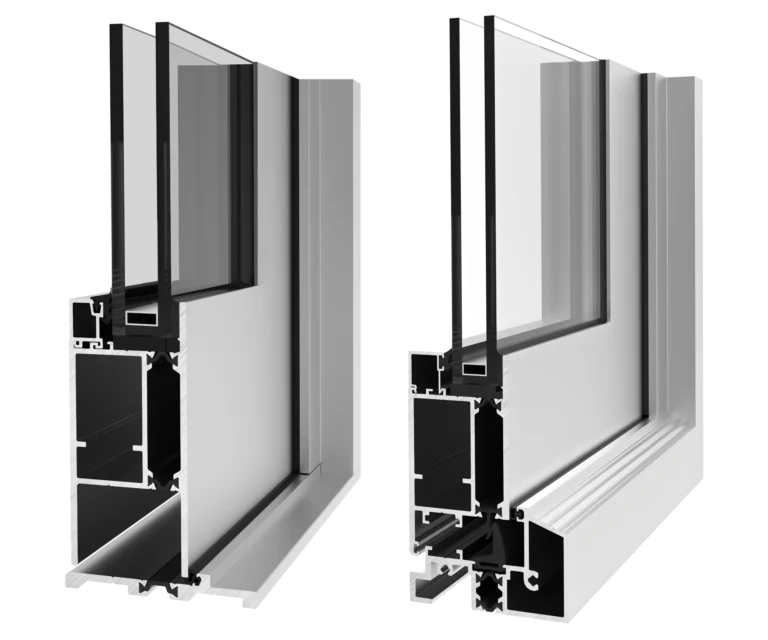

Thermally Broken

Benefits

  • Multi-point locking system engages lock stile, top and bottom rails for added security
  • Low Profile Threshold Option Available
  • Shipped completely fabricated and mounted in frame to expedite installation
    • Singles to 4’-0” x 8’-0” Frame Size
    • Pairs to 8’-0” x 8’-0” Frame Size
    • Factory glazed by YKK AP or unglazed
  • Durable Handle Sets
    • Two standard handle set styles
    • Standard Finishes
      • Painted Oil Rubbed Bronze (over zinc)
      • Painted Wet White (over zinc)
      • Brushed Chrome (over solid brass)
    • Custom paint and plated finishes available
  • Tested in accordance with AAMA / WDMA / CSA 101 / I.S.2 / A440 – 11
    • Outswing:
      • AW – PG 80 – ATD (Single)
      • AW – PG 65 – ATD (Pair)
    • Inswing:
      • AW – PG 60 – ATD (Single)
      • AW – PG 40 – ATD (Pair)

Data

Construction Use: New / Retrofit

Door Type: Swinging/Terrace Door

Glass Type: Insulating

Thermal Method: Iso Struts

Product Line

Anodized Plus® / MegaTherm®
