Category: Entrances

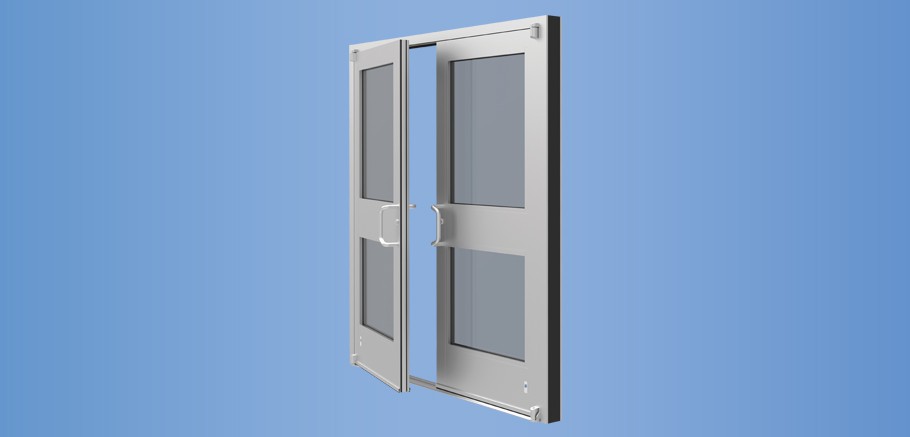

Our MegaTherm® 35/50 XT Advanced Thermal Commercial Swing Doors offer excellent energy efficiency and condensation resistance. They fit seamlessly within our enerGfacade® suite of products, making them a versatile option for clients interested in LEED® certification.

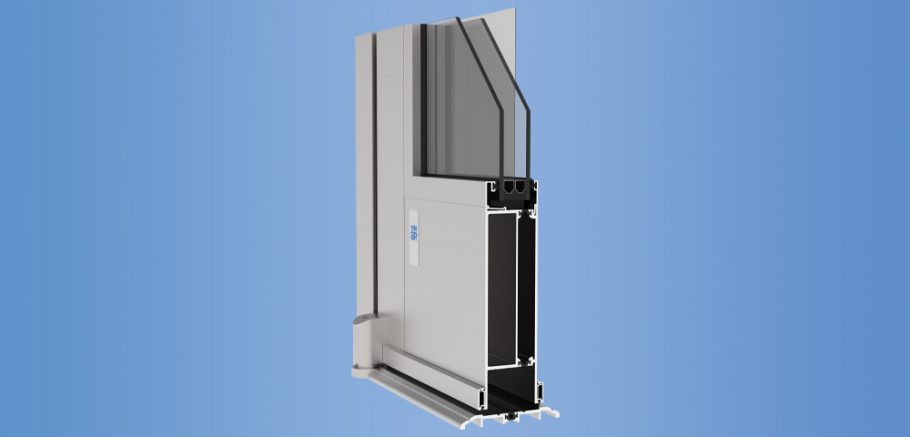

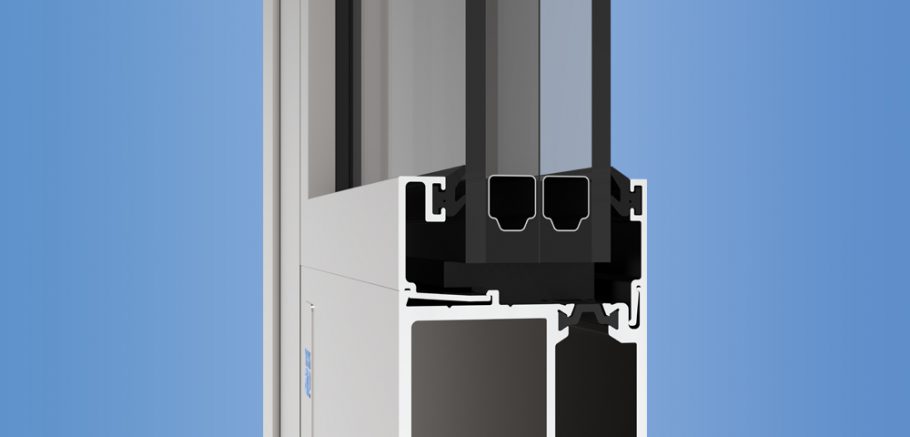

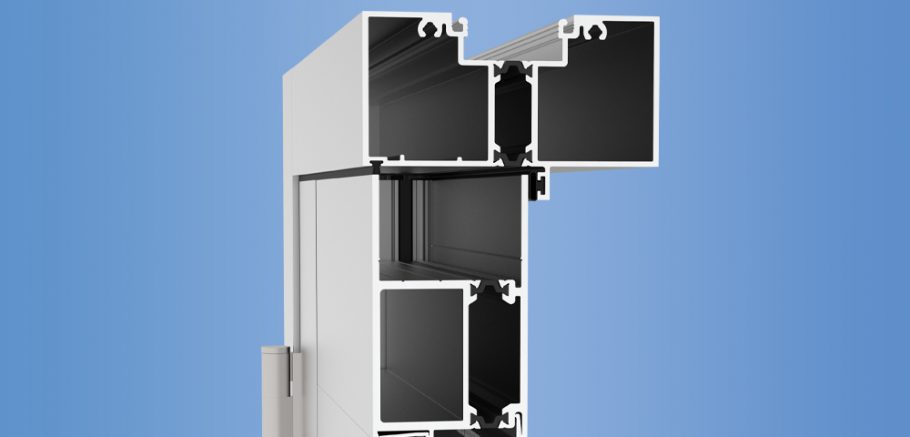

Available in both a medium (35XT) and wide (50XT) stile, our MegaTherm Commercial Swing Doors are thermally broken using our MegaTherm polymer. This polymer provides excellent energy efficiency and condensation resistance using a non-conductive barrier, which expands and contracts at the same rate as aluminum, allowing the door to retain its integrity through wide temperature fluctuations. All of these qualities make a MegaTherm XT entrance a prime candidate for buildings, requiring LEED certification.



The MegaTherm feature gives the designer the option of having different finishes (1) or colors on the interior and exterior side of the doors. Coupled with the mechanically joined/welded door corners and an extensive array of hardware options, this entrance system is highly versatile and durable.

Read More

Product Data

Features

Advanced Thermal / Thermally Broken

Benefits

  • Accepts standard 1″ insulating glazing units as well as advanced glazing, including suspended film, up to 1-1/2″
  • Foam polymer inserts in the horizontal members to reduce convection
  • Dual perimeter air seals
  • Doors designed to allow many hardware options without bridging the thermal break – our doors have additional space so that hinges don’t bridge the break.

Standard Entrances

  • Singles: 3′-0″ x 7′-0″
  • Pairs: 6′-0″ x 7′-0″
  • Offset Pivot, Butt Hung and Continuous Hinge
  • MS Lock, RIM and CVR Exit Device

Custom Entrances

  • Singles: 4′-0″ x 8′-0″
  • Pairs: 8′-0″ x 8′-0″
  • Standard and Custom Hardware

Data

Construction Use: New / Retrofit

Door Type: Swinging/Terrace Door

Entrance Style: Standard

Stile Width: Medium / Wide

Glass Type: Insulating

Thermal Method: Iso Struts

Product Line

Anodized Plus® / enerGfacade® / MegaTherm®
